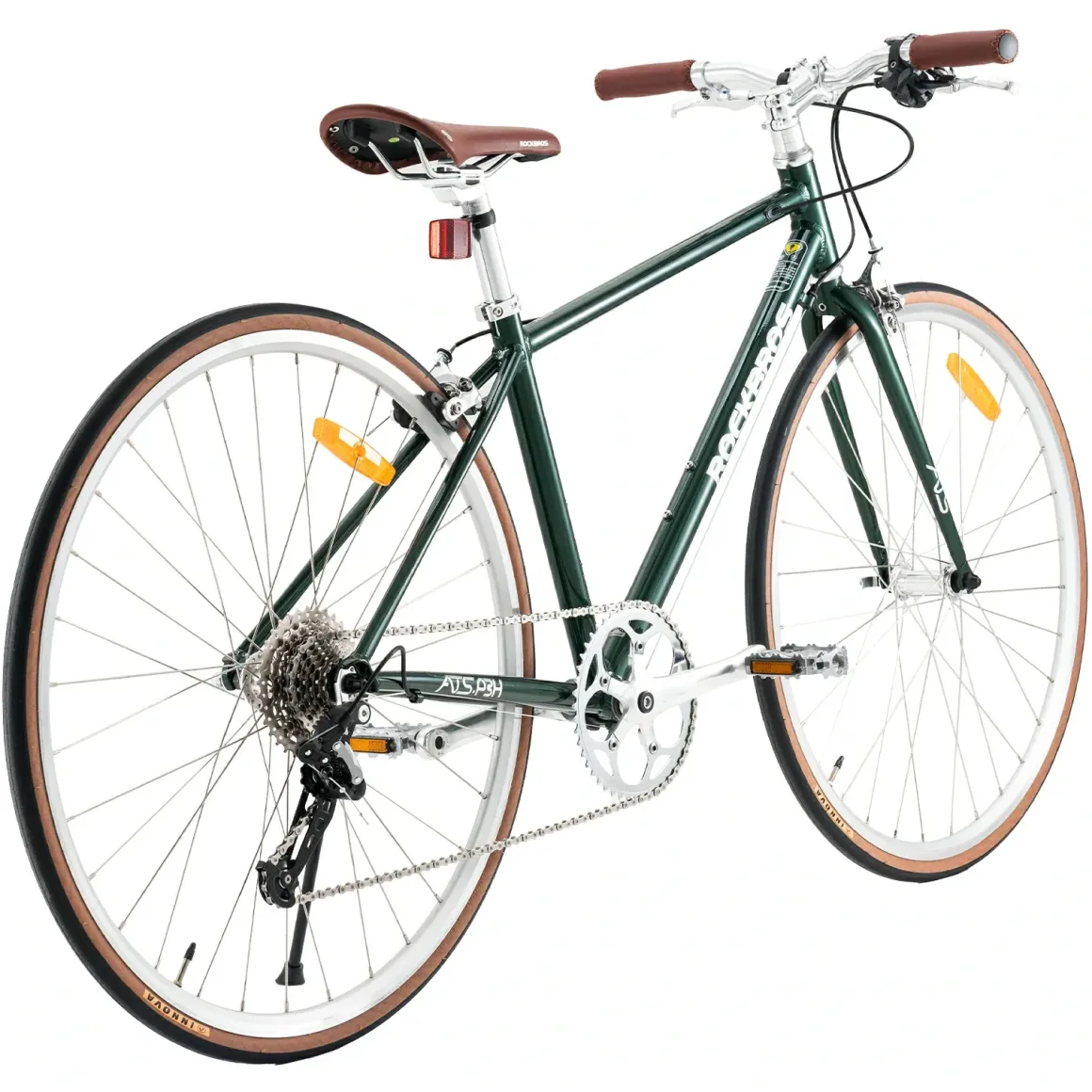

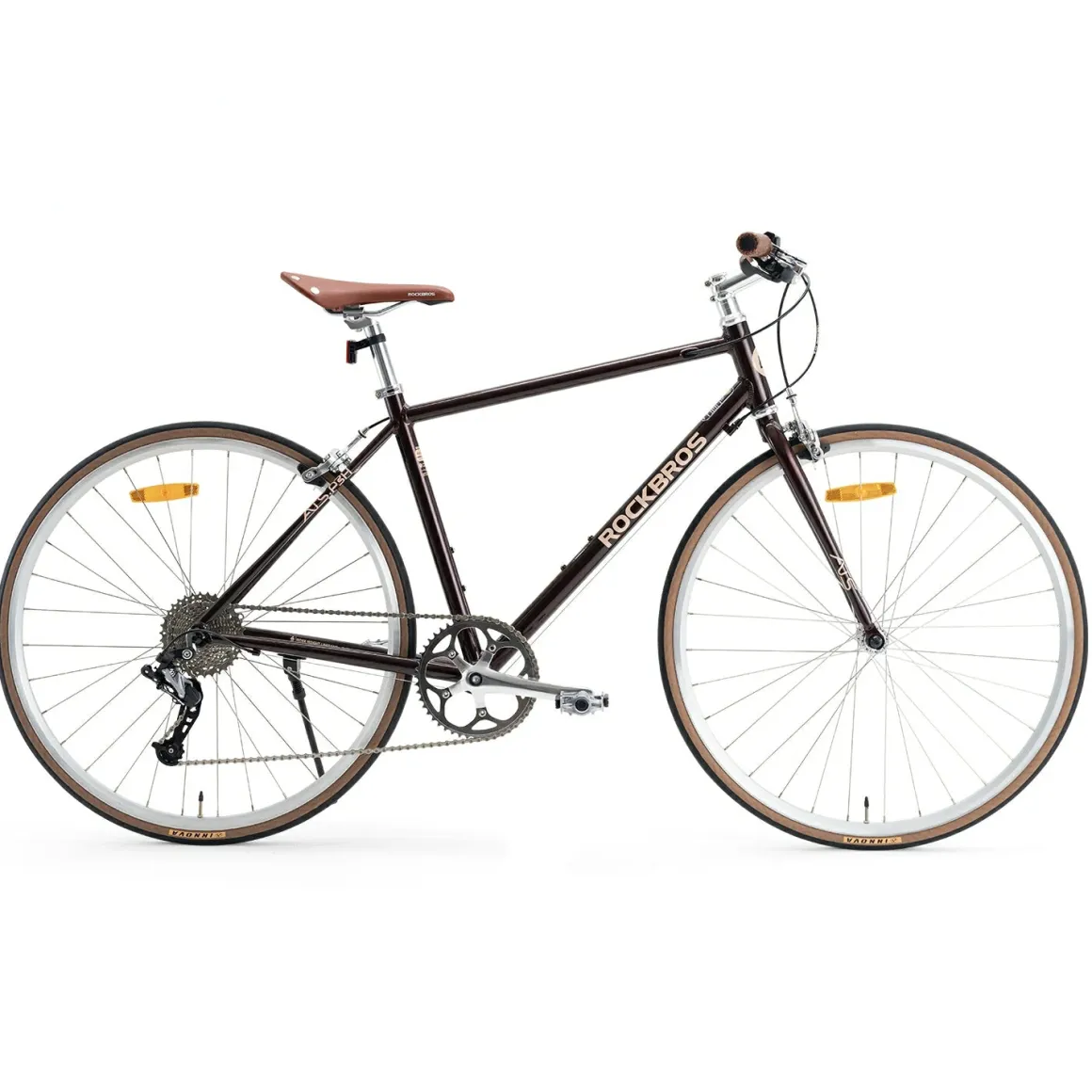

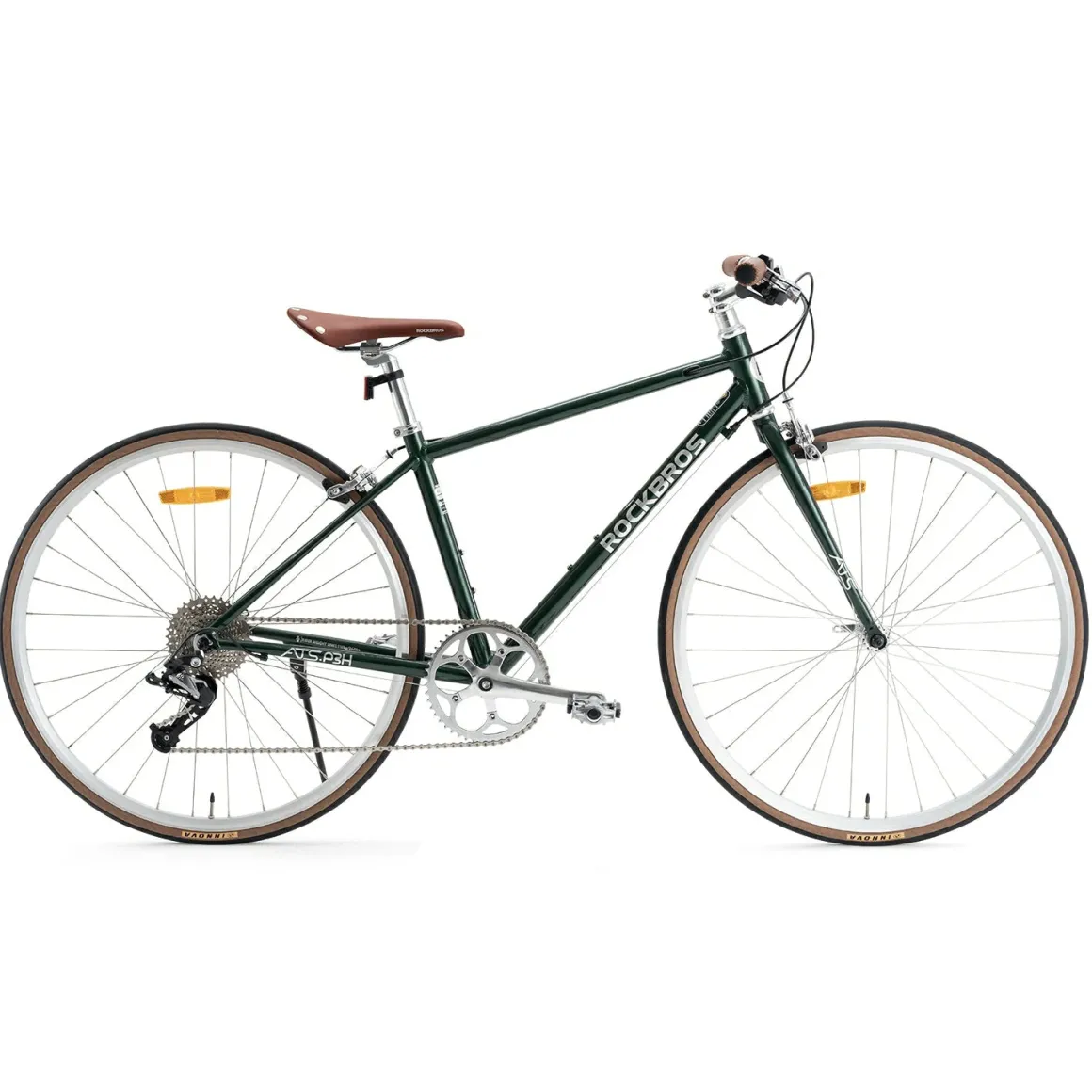

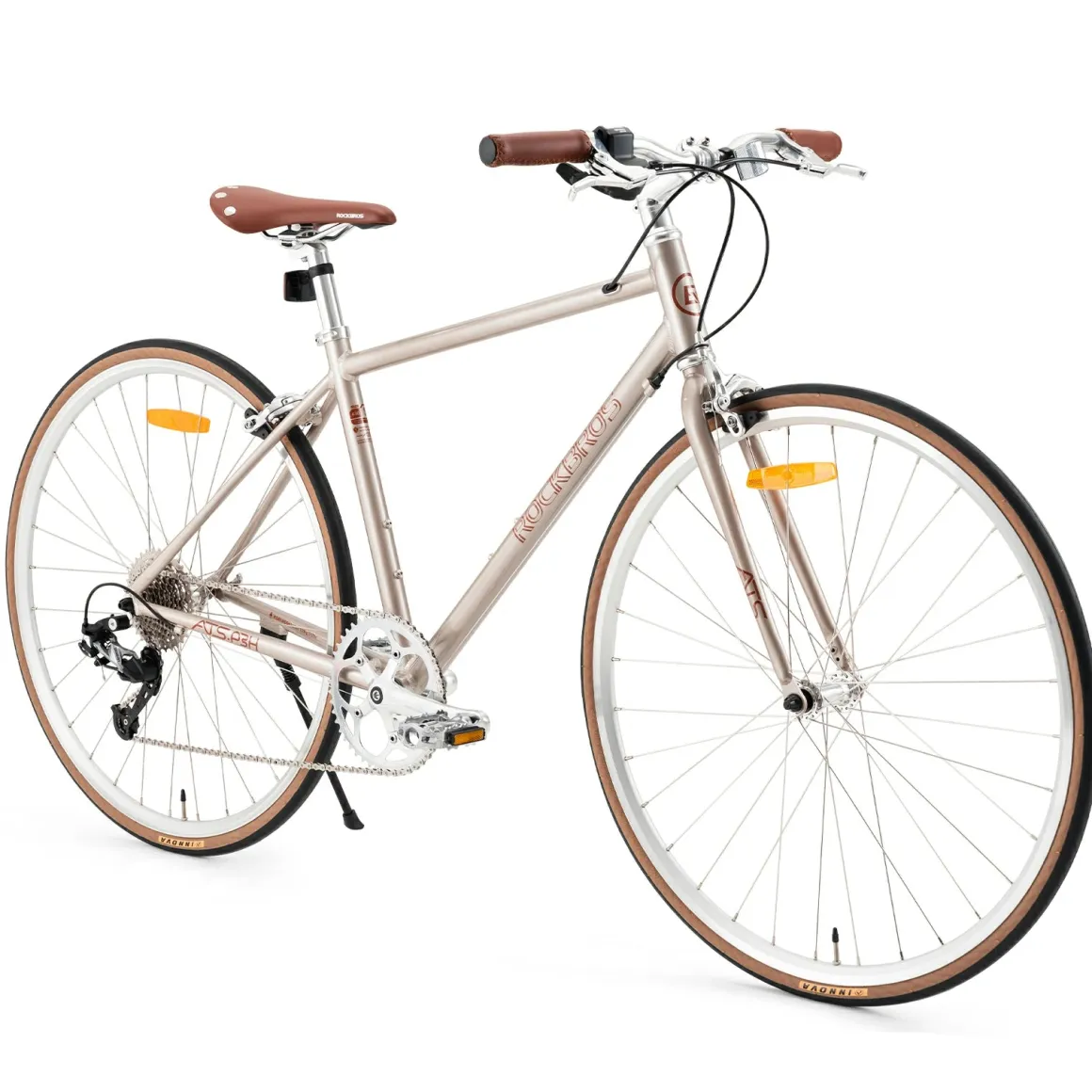

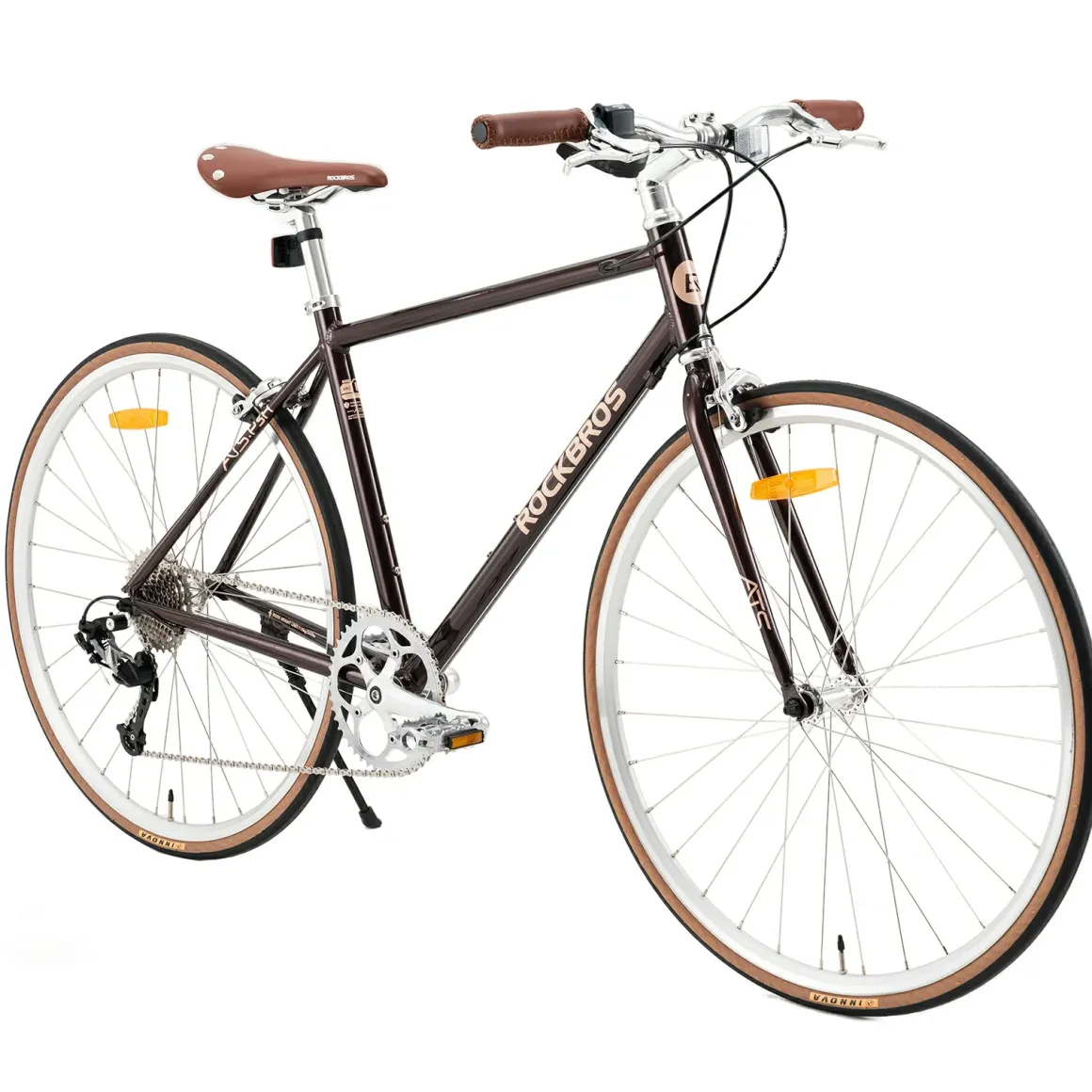

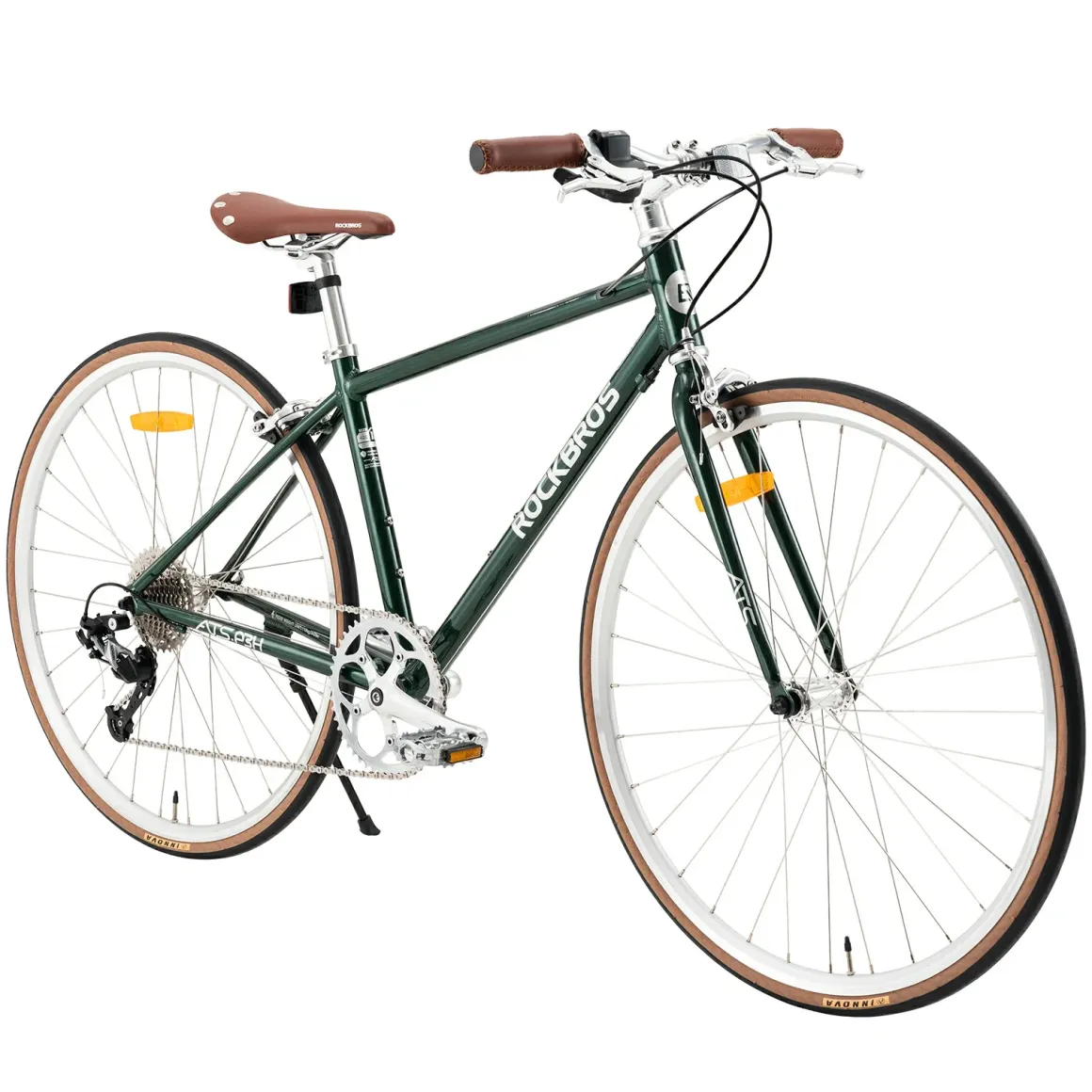

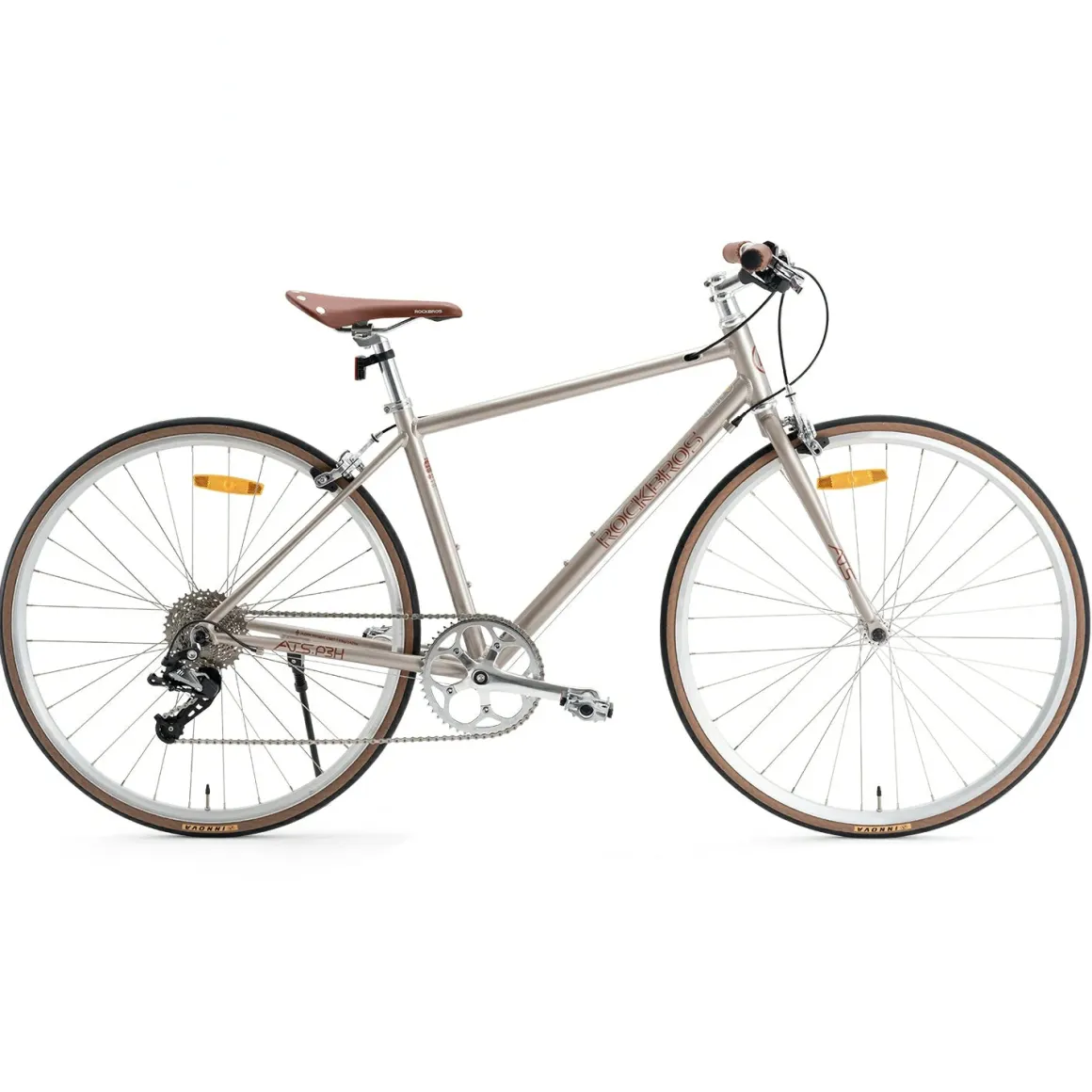

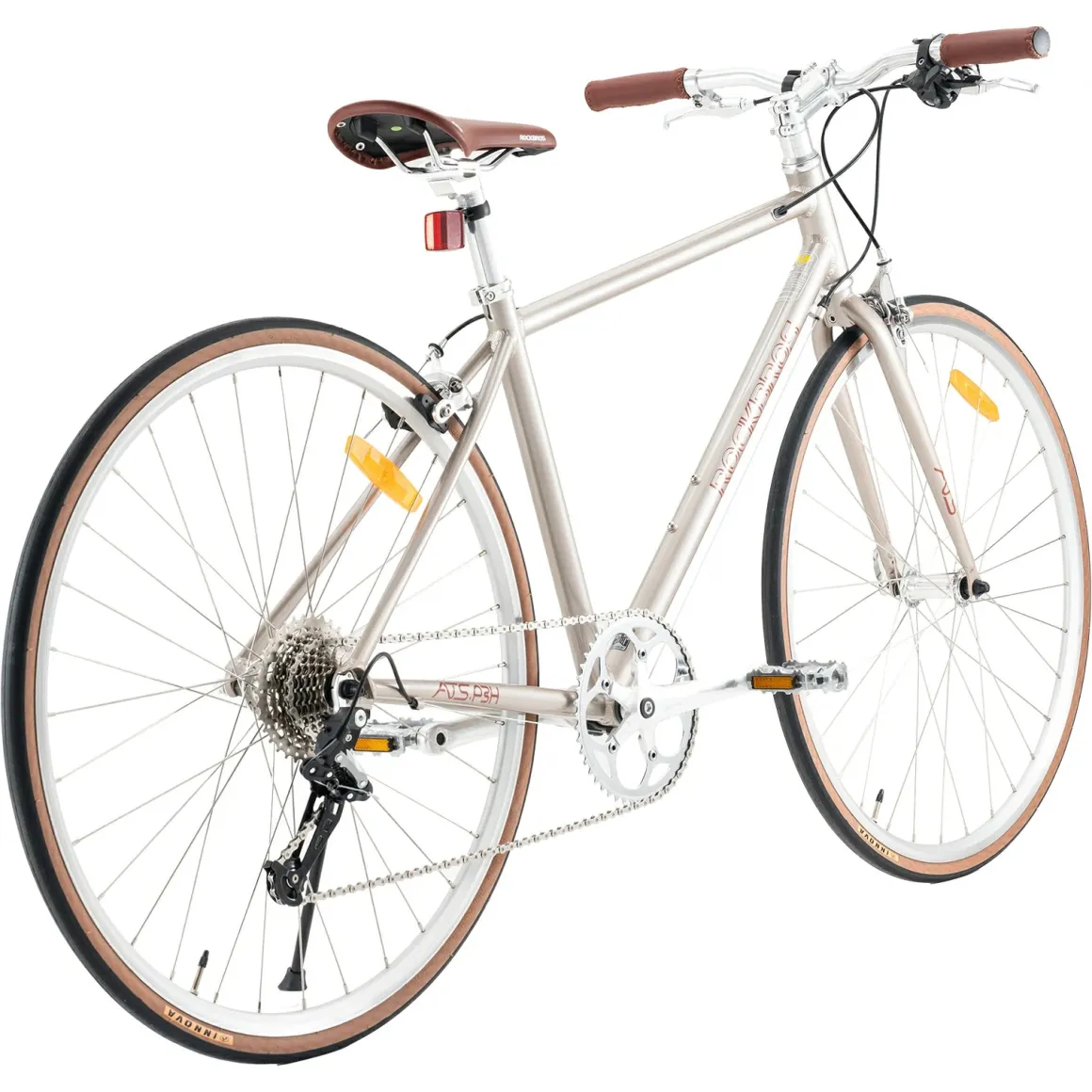

ATS Classic 700C Road Bike

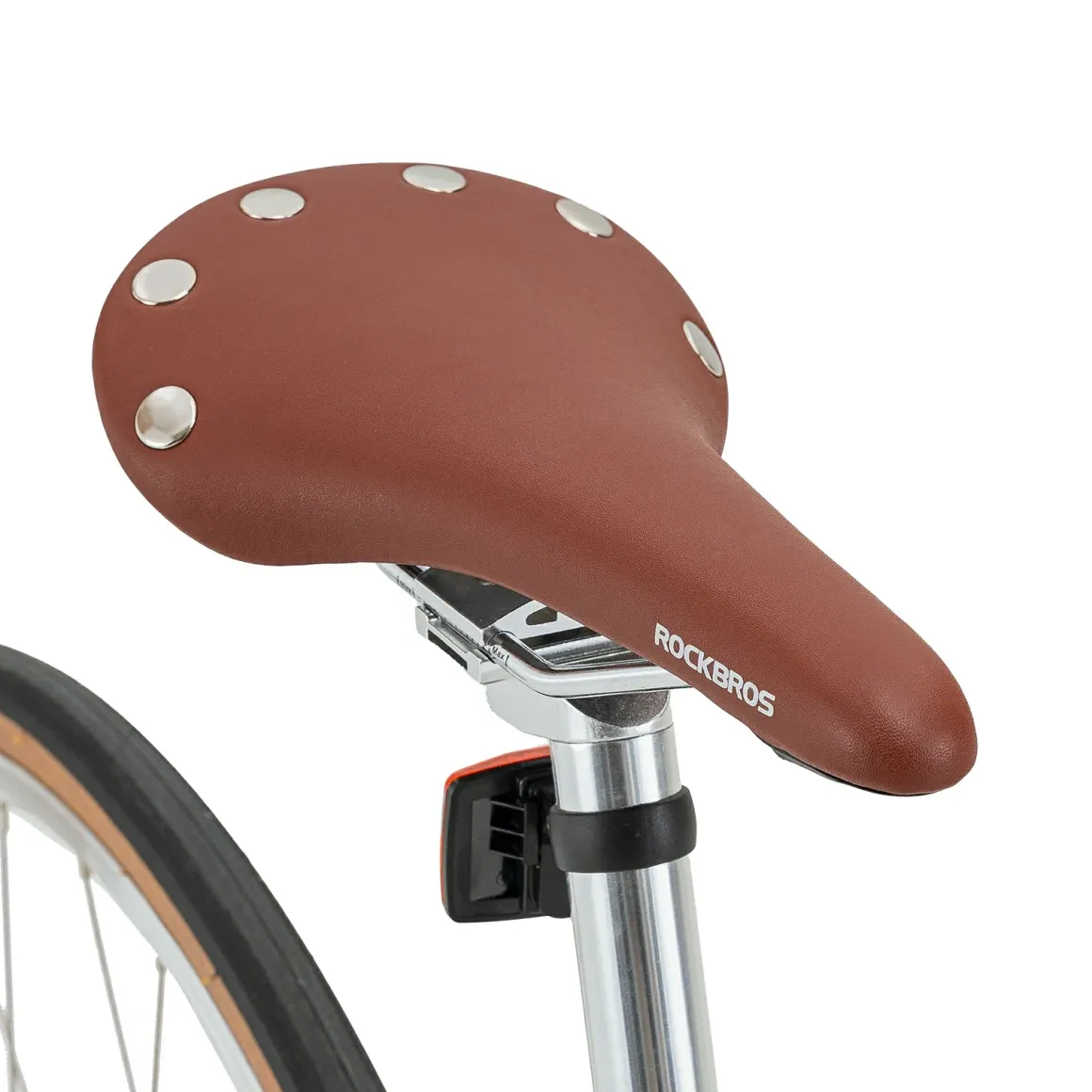

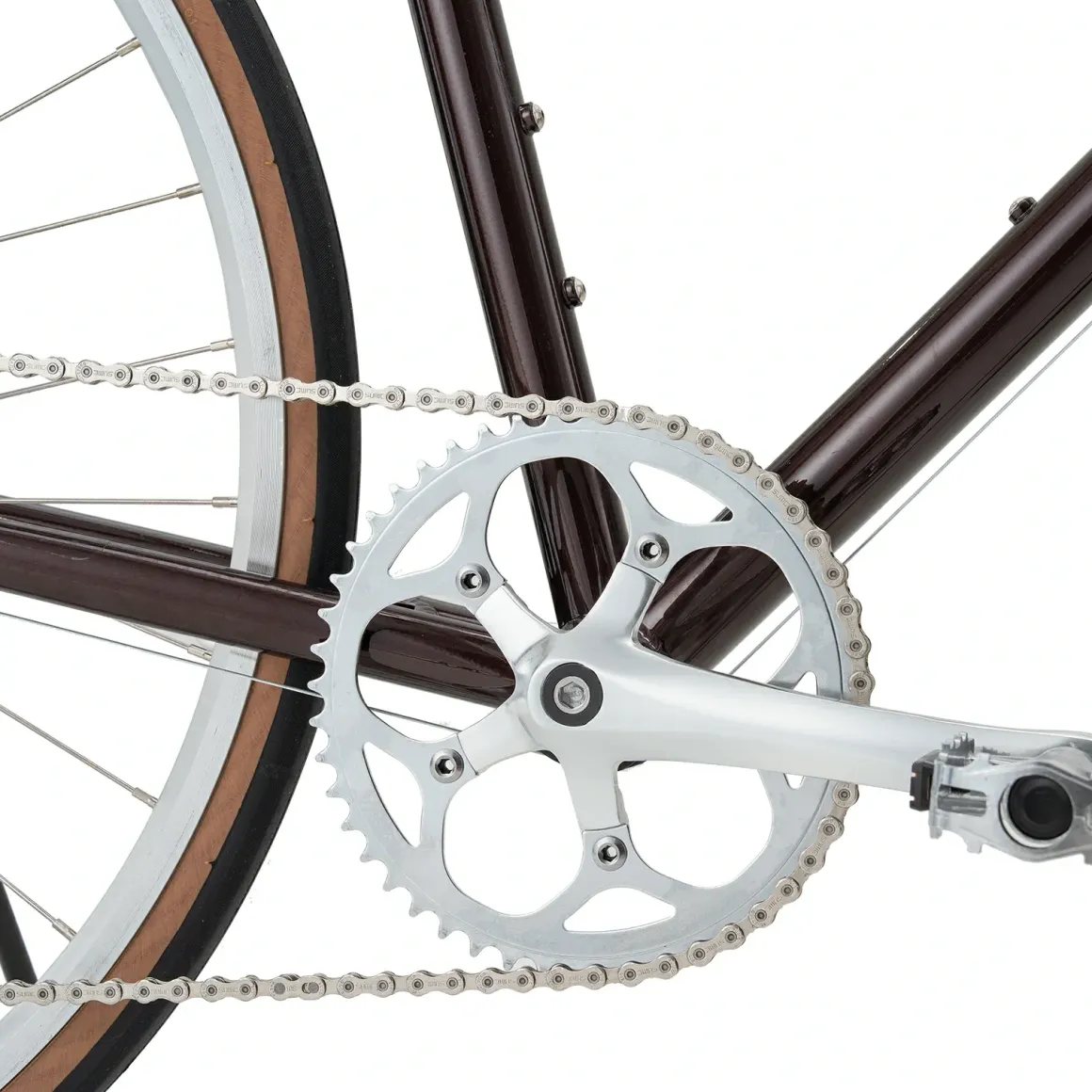

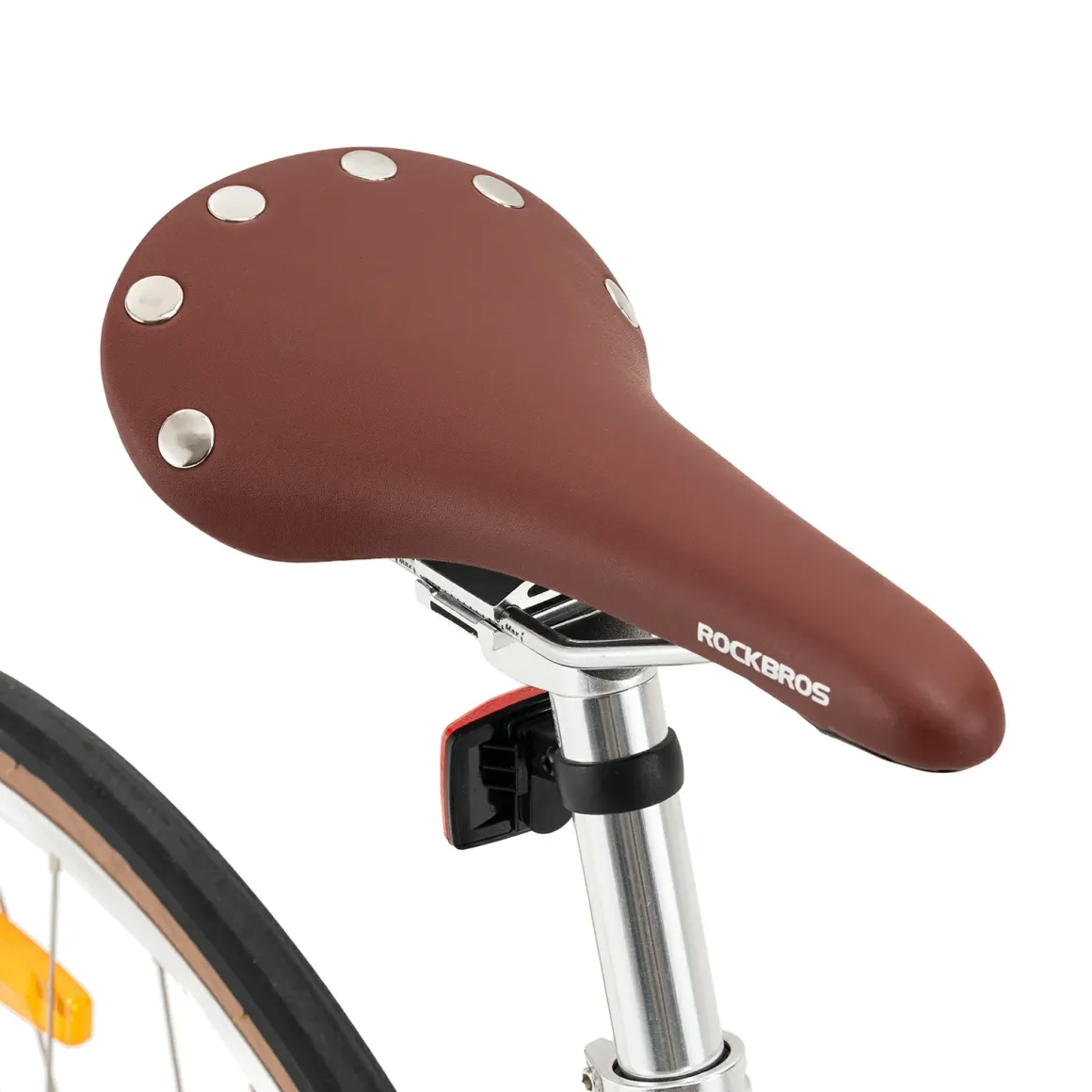

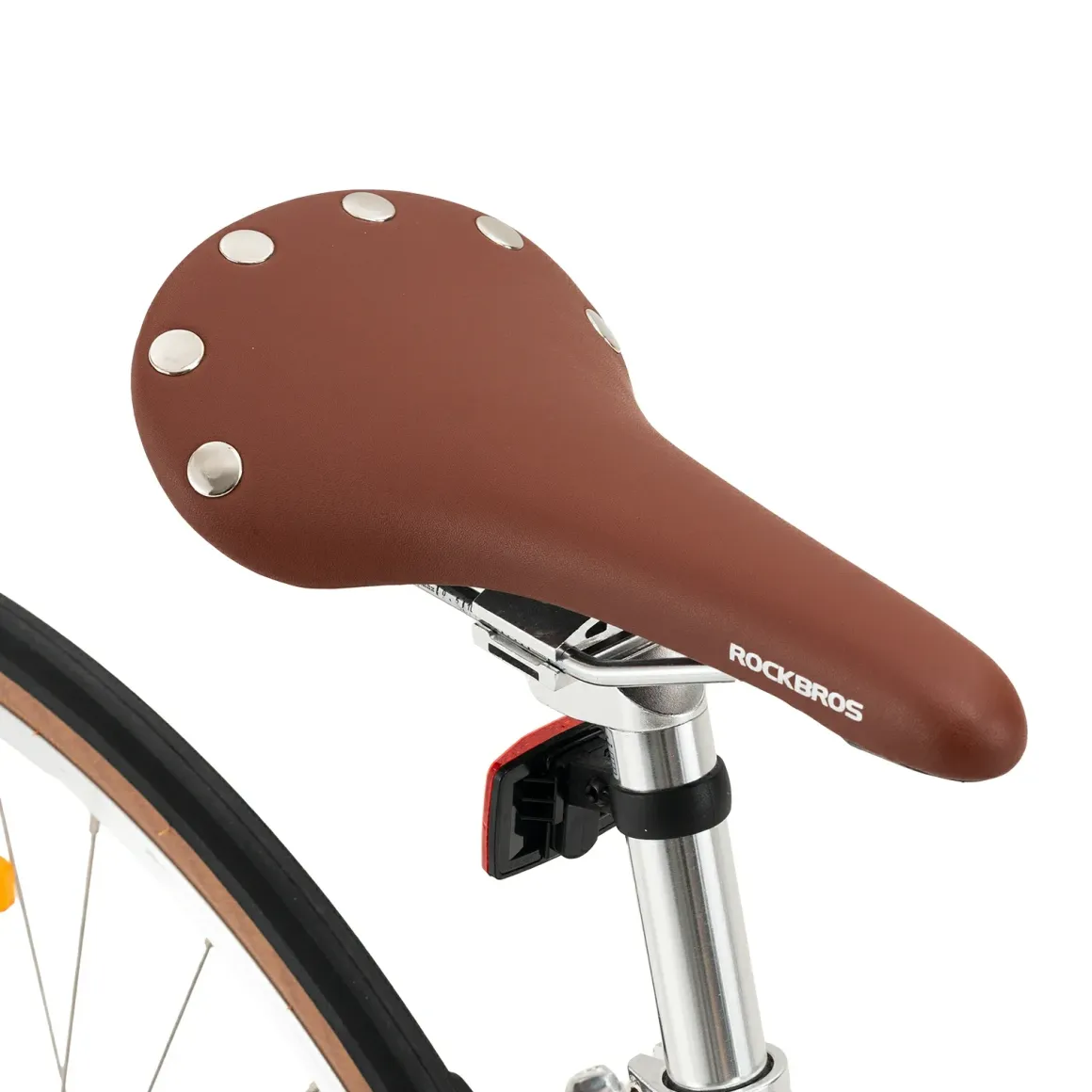

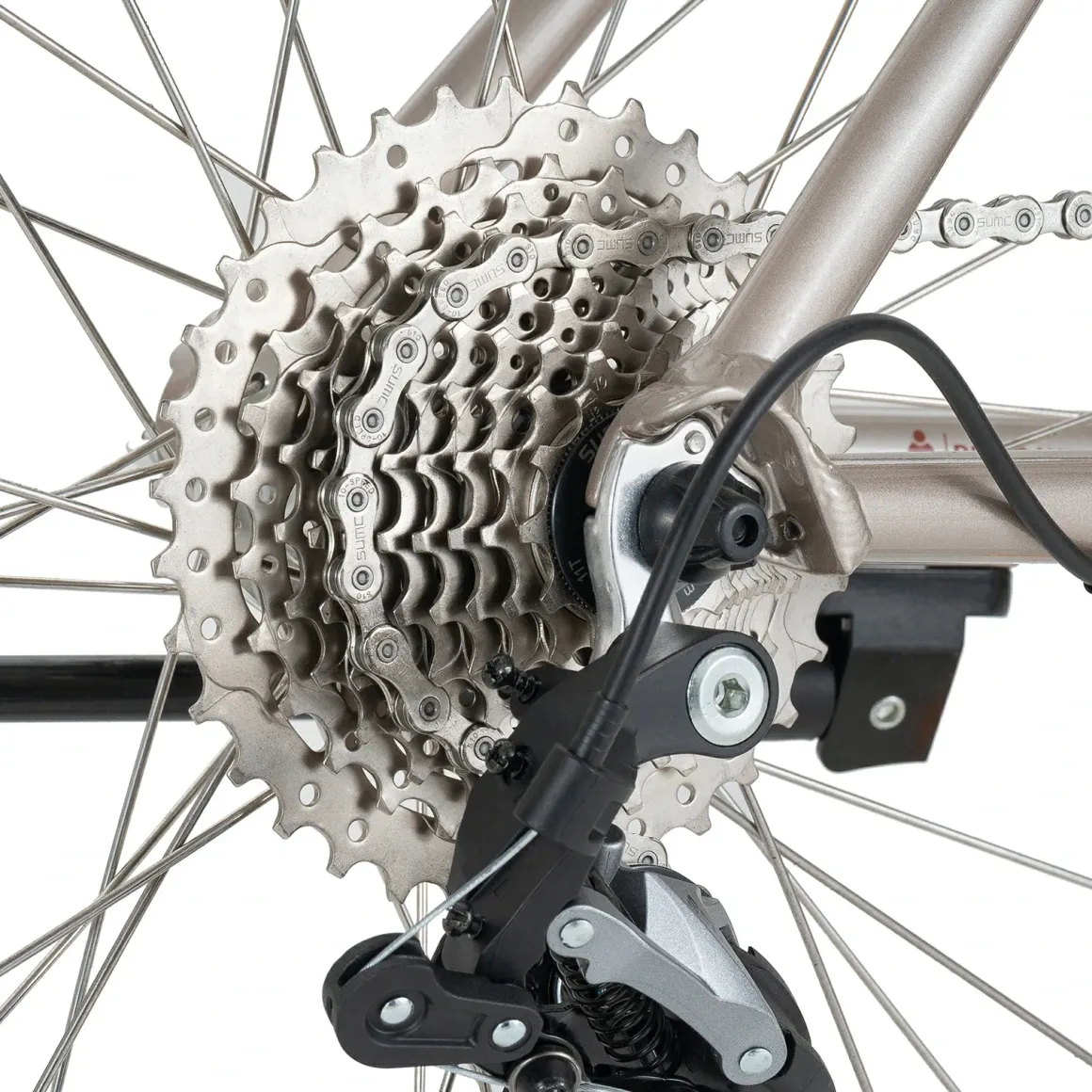

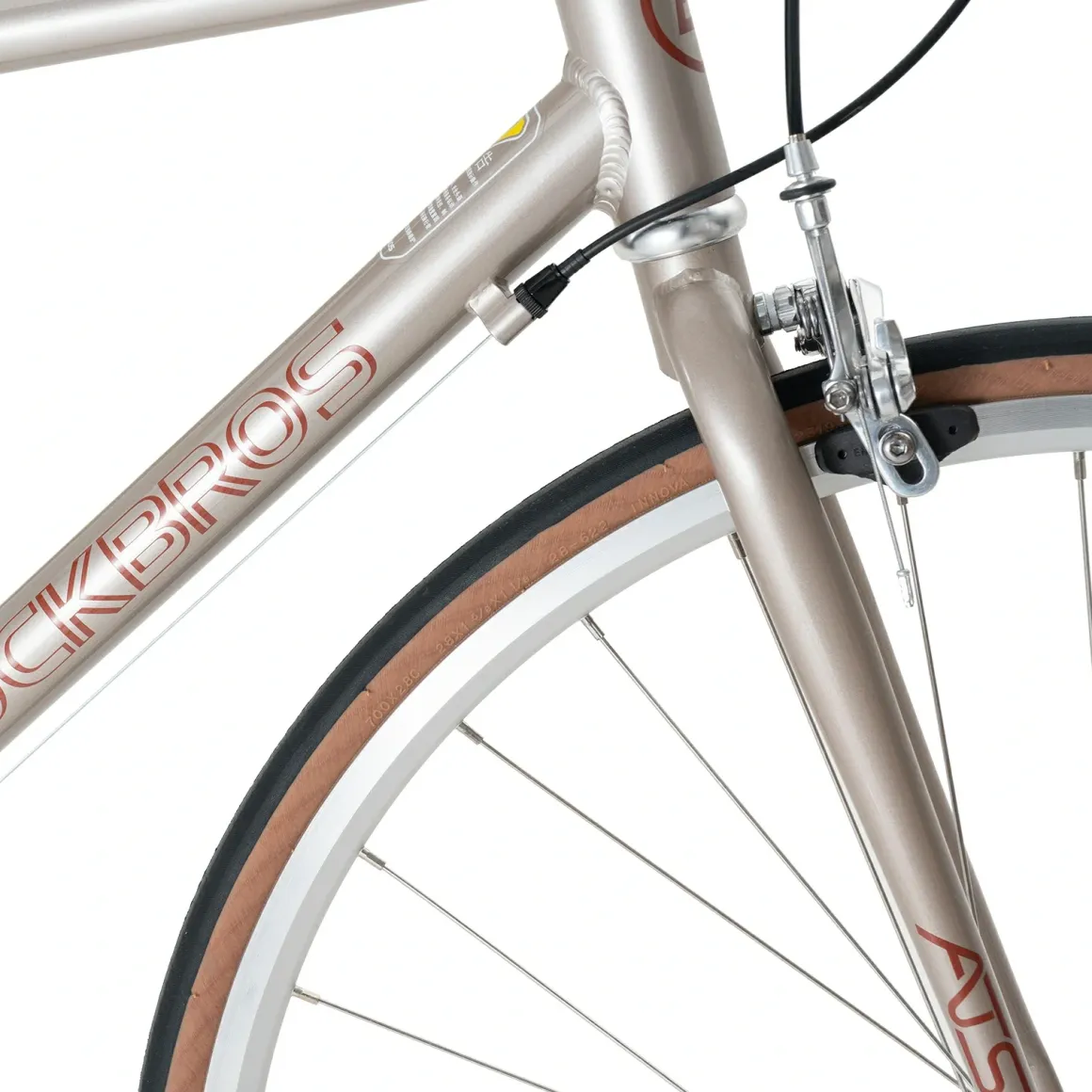

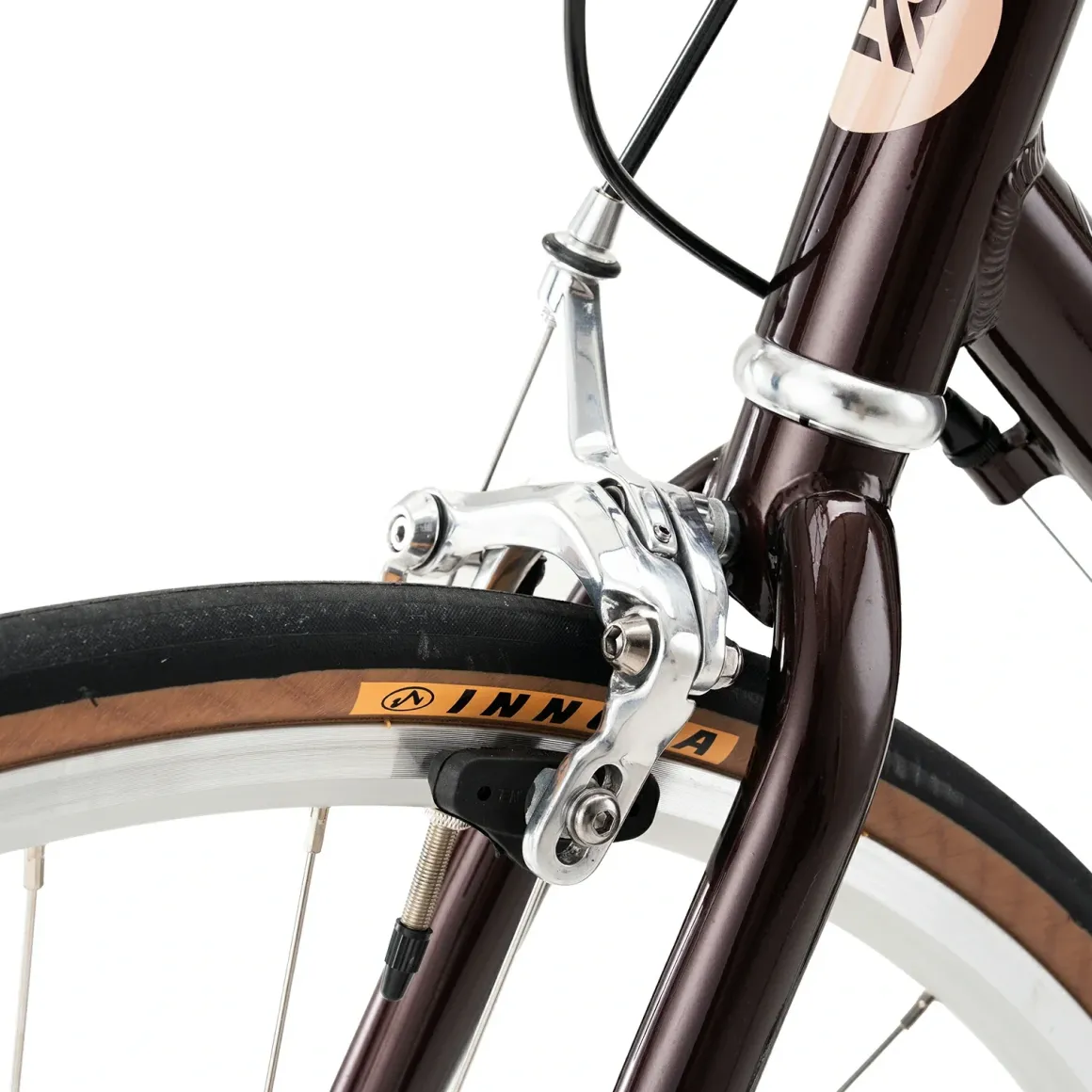

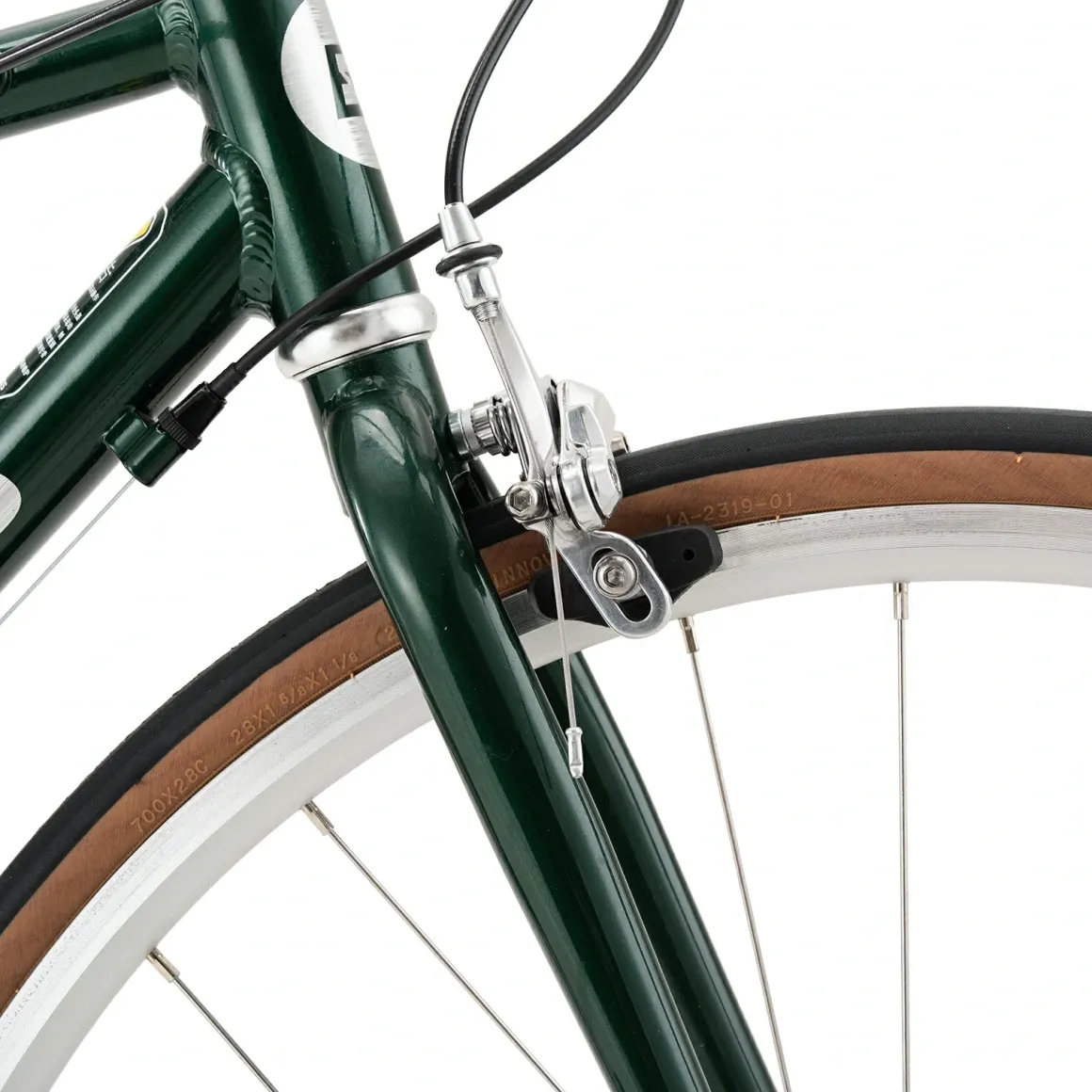

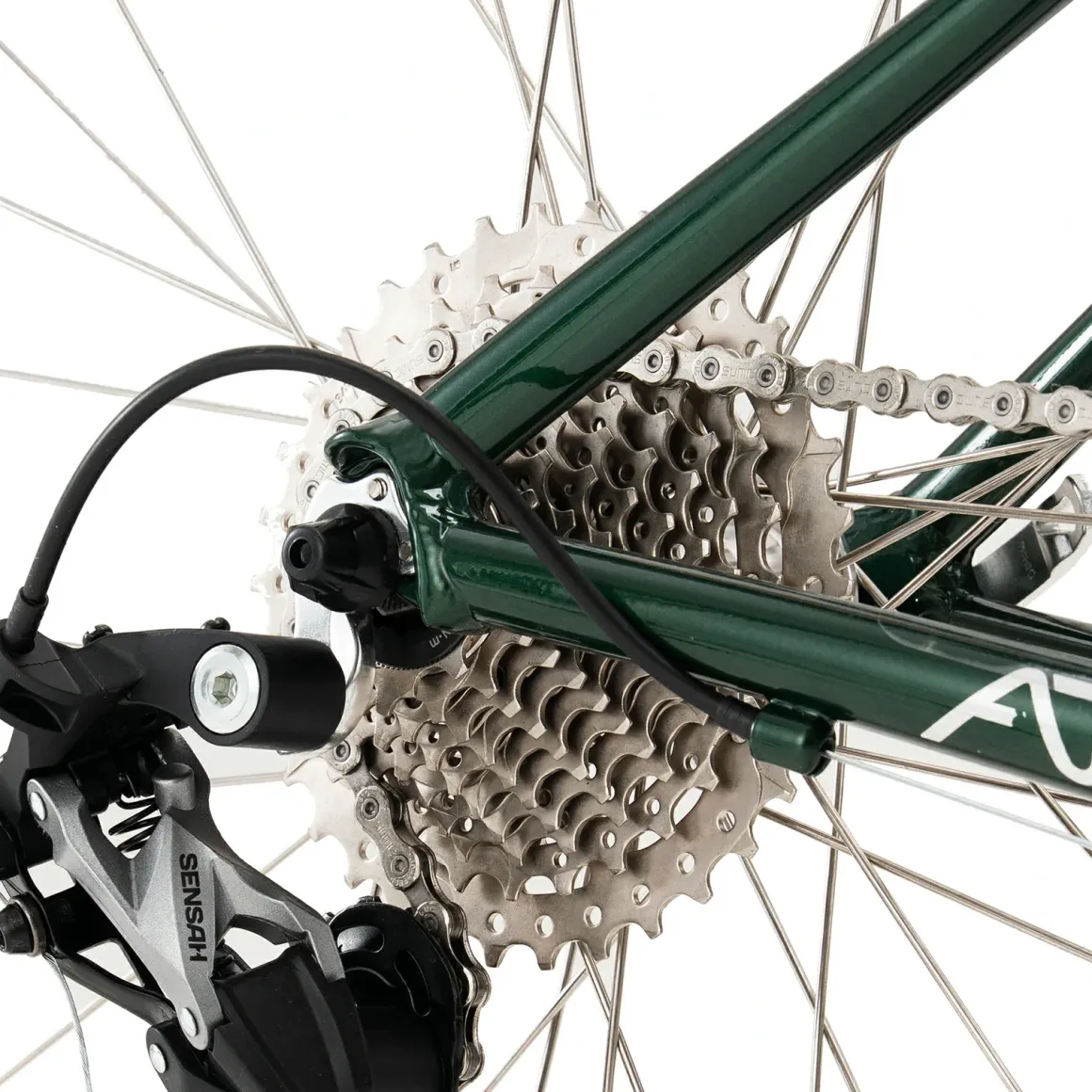

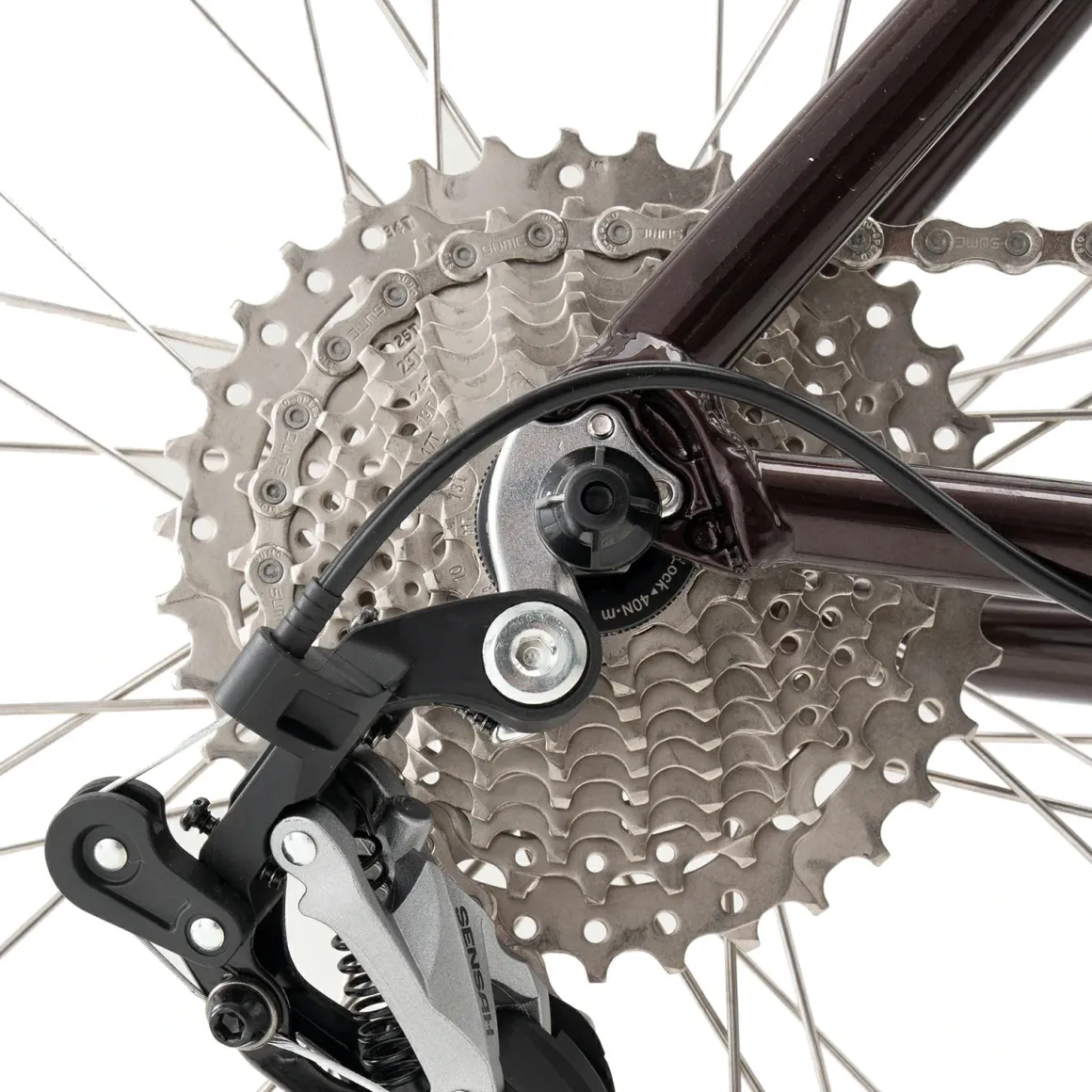

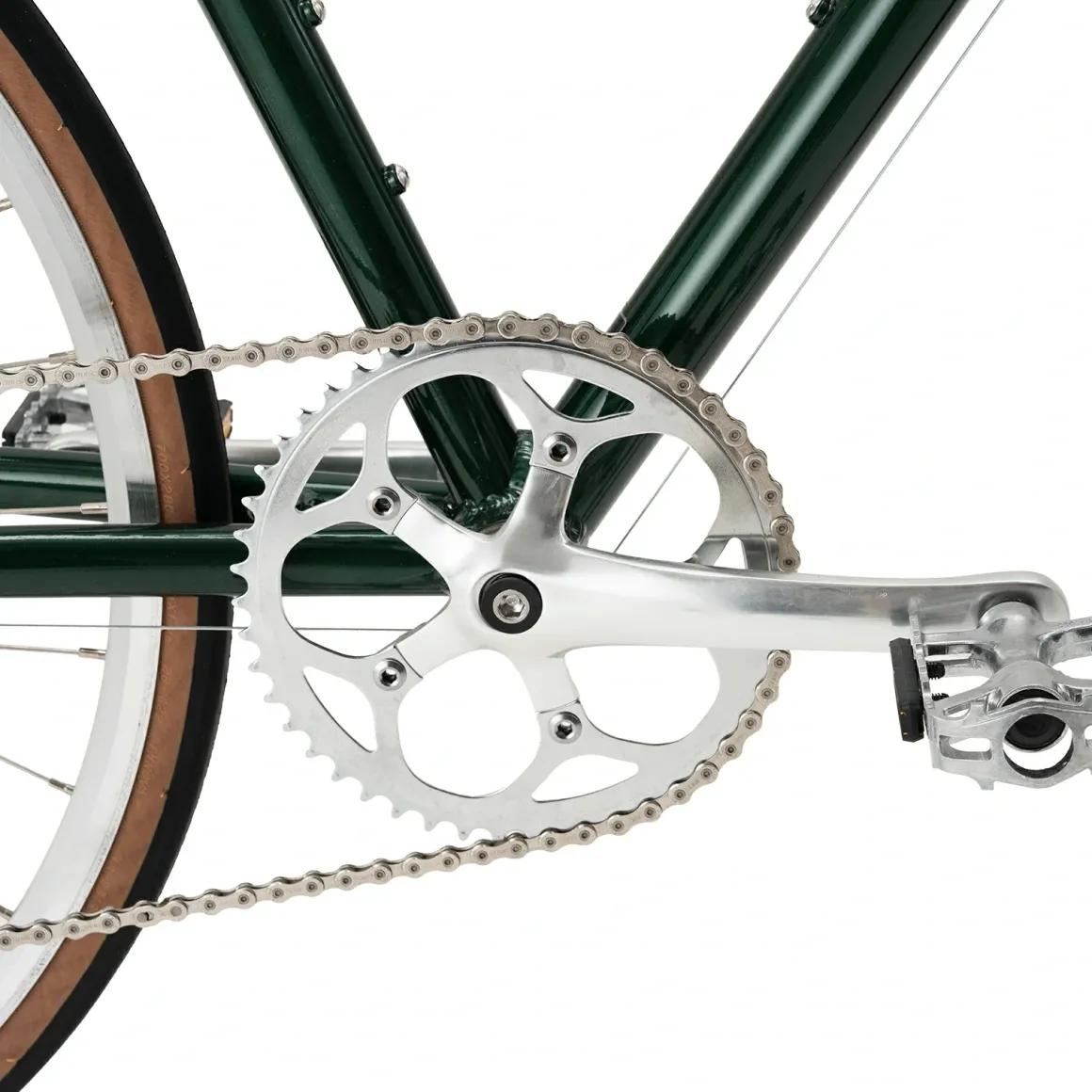

Frame ROCKBROS Aluminum Alloy Frame Front Fork ROCKBROS Steel Rigid Fork Handlebar Aluminum Alloy Drop Bar, 31.8 × 530 mm Stem Forged Aluminum Alloy Stem, 31.8 × 28.6 mm Saddle ROCKBROS Brown Saddle Seatpost Aluminum Alloy Seatpost, 27.2 × 300 mm Bike Weight Approx. 10.10 kg (Size M) Shifters Shuntai SL6900-M10-R10, 10-Speed Rear Derailleur Shuntai RD8500-M10-GS, 10-Speed Cassette SunRace 10-Speed Cassette, 11–28T Brake System Single-Pivot C-Brake Crankset Aluminum Alloy Square Taper Crankset, 170 mm × 48T Rims Aluminum Alloy Rims Wheelset Aluminum Alloy Spoked Wheels Hubs Aluminum Alloy Quick Release Bearing Hubs Spokes 14G Medium Carbon Steel Spokes with Brass Nipples Tires INNOVA 700C × 28C Valve Type Presta Valve (FV), 32 mm

Geometry Specifications (Unit: mm / °)

Seat Tube (mm) 420 450 480 510 Top Tube (mm) 550 565 579 600 Chainstay (mm) 445 445 445 445 Front Center (mm) 609 624 628 645 Seat Tube Angle 73.5° 73.5° 73.0° 73.0° Head Tube Angle 70.5° 70.5° 71.0° 71.5° Wheelbase (mm) 1045 1060 1064 1086 BB Drop (mm) 68 68 68 68 Head Tube (mm) 120 130 140 160 Fork Offset (mm) 45 45 45 45 Fork Length (mm) 387 387 387 387 Trail (mm) 390 402 407 422 Stack (mm) 541 550 562 583 Standover Height (mm) 675 701 728 756
